Duncan Linear LED

  • Protection factor: IP40, IP54
  • Category: New built, Renovation
  • Applications: Warehouses, Manufacturing and production, Offices, Retail, Cold storage, Renovation
  • Product: LED
  • Height: >40 feet

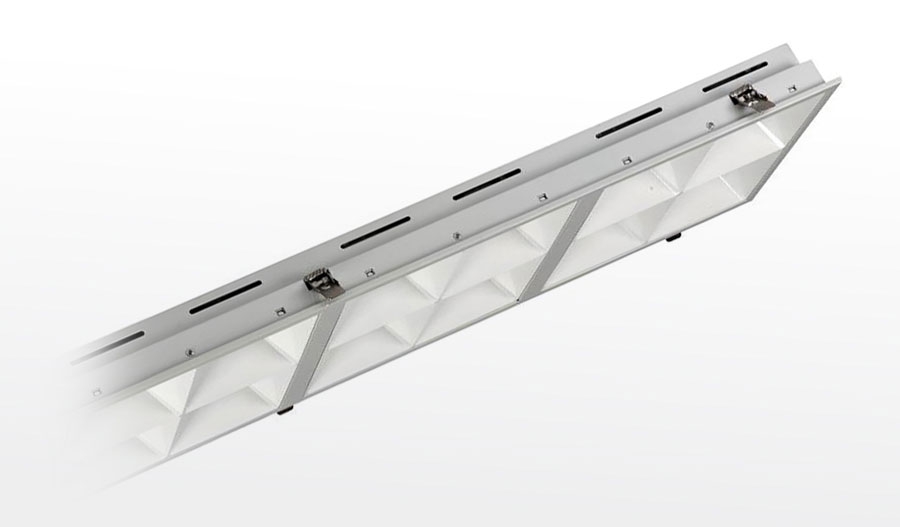

The multifunctional Duncan has been developed especially for retail, industry, offices and utilities. The patented lighting system is a perfect fit everywhere: its lumen output and light diffusion can be fine-tuned to the installation height, décor and location application. The microprismatic design of the lens optics is wholly unique and does not require a reflector to reduce lens glare. This results in an open, transparent design with optimum light yield combined with maximum comfort. The Duncan has been developed to meet EN standards.



The Duncan system can be used as a continuous light line and can be complemented with a wide range of light spots that can be easily clicked onto the profile. The transparent lenses and matching transparent hoods give it a highquality look and feel. All elements can be easily linked to create nice continuous lines without any visible connections. Veko also pre-installs the fixtures onto aluminium support profiles, which significantly reduces assembly time.



The energy-efficient Duncan light line has the highest lumen-to-watt ratio on the market. In order to save even more on energy costs, it is also possible to connect the Duncan to a Light Management System, which controls the light line even more efficiently. Veko’s light lines are among the most sustainable products in the world. The lighting is delivered almost without any packaging, is 100% recyclable and can be easily refurbished up to 45 years after installation.



Specifications

IP code IP40 (Narrow, Wide, Lambertian and Diffuse)
IP54 (Narrow, Wide, Lambertian)

Length

500 mm; 1,000 mm; 1,500 mm; 2,000 mm

Output flux

1,850 - 17,000 lm

Wattage

11 - 122 W

Voltage

220 - 240 V

Frequency

50 ÷ 60 Hz

Power factor

>0.9

Drivers

Signify or Osram

Operational temperature*

-20 ºC to +35 ºC

Weight

Approx 2.5 kg/m, including profile and accessories
Application Industrial areas, retail, offices, coldstores and swimming pools

Installation height

2 - 20 m

Colour temperature

Natural white (± 4,000 K)

On request other colour temperatures possible (3,000 - 6,500 K)

Colour Rendering Index (CRI)

>80 (>90 possible)

Lens options

Narrow, Wide, Lambertian and Diffuse

Cover material

PMMA

Material

Untreated aluminium

Colour

Untreated aluminium, anodized and RAL colours

Impact resistance

IK03 (IP20 and IP40: Diffuse)
IK07 (IP20-IP40, IP54 and IP65: Narrow, Wide and Lambertian)

Options

DALI, CLO, corridor, centralized and decentralized emergency lighting

Warranty

L85B10 / at least 5 year warranty / Ta 35 °C

Life span

It is possible to reach 100,000 hours
BREEAM Yes

* Fixtures equipped with decentralized emergency lighting batteries have an operational temperature of +5 ºC to +25 ºC.
