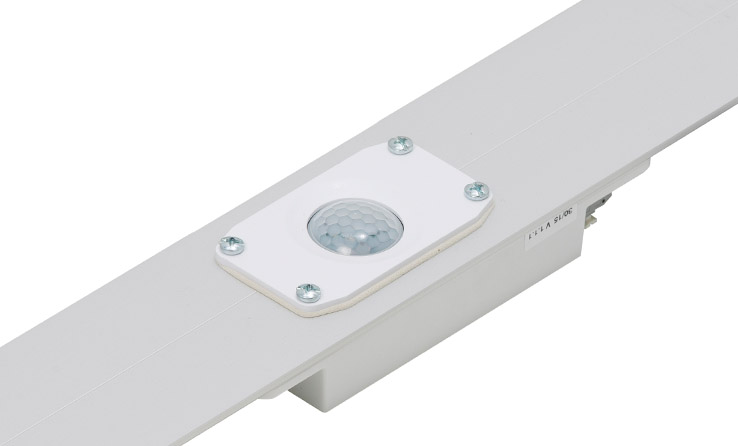

MD-L-R Advanced Relay
Description
The waterproof MD-L-R Advanced Relay presence sensor is an excellent component to add to Veko lighting in open spaces. Its detection angle and a combination of useful features allow this motion sensor to achieve optimal energy savings. No movement can escape the MD-L-R Advanced Relay’s high-precision infrared (PIR) sensor, which detects and interprets all changes in the thermal image at lightning speed.
The MD-L-R Advanced Relay has a variety of settings for detection sensitivity, switch-off delay and twilight switching. A handy remote control allows you to set the lighting, read it out and easily adjust it to the situation. Your lighting will never be on unnecessarily when there is sufficient daylight, and it will switch off (on a time delay) when there is no more movement. This will ensure that the precise amount of light desired will always be provided in every space.
Specifications
| IP code | IP20 - IP54 - IP65 |
|
Length |
300 mm |
|
Wattage |
0,5 W < 4 W (off < on) |
|
Voltage |
220 - 240 V |
|
Frequency |
50 ÷ 60 Hz |
|
Circuit |
6A |
|
Sensitivity settings |
5 (standard maximum sensitivity) |
|
Twilight sensor |
Adjustable in 9 steps 0 - 1,000 Lux |
|
Turn-off delay relay |
Relay 1 - 99 minutes |
| Turn-off delay sound | 2 - 12 minutes (standard 6 minutes) |
|
Working environment |
-25 ºC to +35 ºC |
| Programming | Programmable by colour coding with LED in the sensor. |
|
ENEC certificate |
Upon request by DEKRA |
|
Warranty |
5 years |
FAQ
What is the advantage of motion detectors?
Motion detectors or presence sensors are an excellent combination to be used with LED lighting, because they can directly turn on and off. This type of lighting is ideal in a hall, or a toilet, but it can also be used in a variety of industrial spaces and warehouses where people are working. Most LED lights are tested to survive 1,000,000 switching times, which is good for years of use. One tip: it is preferable to apply a motion detector separate from the luminaire, since the light source is likely to last longer than the sensor. Moreover, a defective sensor can prevent additional cost savings.
Can I program a MD-O presence detector from the factory settings?
Yes, using a remote control unit (TR61). You can program multiple presence detectors with one remote control.
I still use an old-type of presence detector. Which is the replacement model?
Do you currently use an ADR? The replacement model is the MD-O-MK2.
Do you currently use an ADVR? The replacement model is the MD-O-MK2.
Do you currently use an ADRI-13? The replacement model is the MD-O-3M.
Do you currently use an ADRO? The replacement model is the MD-O-BO.
All our MD-O presence detectors can be programmed by remote control, using the TR61.
Is your current presence detector not included on this list? Please get in touch with us by email at info@veko.com
The presence detector I have received is faulty. How can I return it?
Send your return request including order number to info@veko.com and describe the problem with the detector. We will then send you a return form with further instructions.
How can I get advice on my lighting system?
Our account managers are happy to visit you for a consultation. Please contact us for an appointment.
Is LED lighting dimmable?
The driver is the determining factor of how dimmable a lamp or luminaire is, and in what way this should be done. For example, drivers can work with DALI, 0-10V or TRIAC (phase cut). Whenever it is possible to dim LED lights, this is always preferable. If the LED can be dimmed by 30%, it can increase savings by 30%, as well as extend the lifespan of the light. Dimming can be done manually, for example, with integrated dimmers, or automatically with a system such as DALI. A DALI system automatically adjusts the dim level of illumination based on the amount of daylight in a room. This is done by placing a sensor with a control device in the room. This additional cost is usually returned within a very short time based on energy savings.
